| Details about selected cell |
| NeuroMorpho.Org ID : | NMO_07300 |

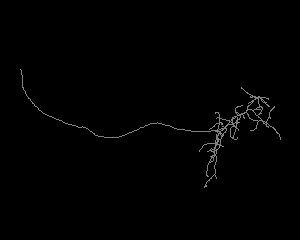

| Cell Name : | WOC7L |
| Archive Name : | Jefferis,DIADEM |
| Species Name : | drosophila melanogaster |
| Strain : | Not reported |
| Structural Domains : | No Dendrites, No Soma, Axon |
| Physical Integrity : | Axon Complete |
| Morphological Attributes : | No Diameter, 3D, Angles |
| Min Age : | Not reported
|
| Max Age : | Not reported
|
| Gender : |
Male/Female
|
| Min Weight : | Not reported
|
| Max Weight : | Not reported
|
| Development : | adult |
| Primary Brain Region : | antennal lobe |
| Secondary Brain Region : | glomerulus VC2 |
| Tertiary Brain Region : | glomerulus VL1 |
| Primary Cell Class : | principal cell |
| Secondary Cell Class : | uniglomerular projection |
| Tertiary Cell Class : | mPN |
| Original Format : | Amira.asc |
| Experiment Protocol : | in vivo |
| Experimental Condition : | Control |
| Staining Method : | green fluorescent protein |
| Slicing Direction : | whole mount |
| Slice Thickness : | Not applicable
|
| Tissue Shrinkage : |
Not reported
|
| Objective Type : | oil |
| Magnification : | 40x |
| Reconstruction Method : | Amira |
| Date of Deposition : | 2010-08-29 |
| Date of Upload : | 2012-05-17 |
| Persistence Vector : | WOC7L.pvec |
| Note : | Reconstruction contributed to the DIADEM Challenge |
|
|
| Reference Article |
| Related Article Reference : | Comprehensive maps of Drosophila higher olfactory centers: spatially segregated fruit and pheromone representation |
|
|
|
|
| Measurements |
| Soma Surface : |
N/A |
| Number of Stems : |
1 |
| Number of Bifurcations : |
49 |
| Number of Branches : |
99 |
| Overall Width : |
30.58 μm |
| Overall Height : |
121.45 μm |
| Overall Depth : |
56.67 μm |
| Average Diameter : |
1.17 μm |
| Total Length : |
645.12 μm |
| Total Surface : |
2388.83 μm2 |
| Total Volume : |
754.19 μm3 |
| Max Euclidean Distance : |
129.58 μm |
| Max Path Distance : |
184.67 μm |
| Max Branch Order : |
16 |
| Average Contraction : |
0.92 |
| Total Fragmentation : |
1286 |
| Partition Asymmetry : |
0.55 |
| Average Rall's Ratio : |
1.88 |
| Average Bifurcation Angle Local : |
110.76° |
| Average Bifurcation Angle Remote : |
96.71° |
| Fractal Dimension : |
1.02 |
|
|
|
|
|
