| Details about selected cell |
| NeuroMorpho.Org ID : | NMO_07681 |

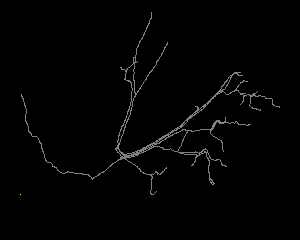

| Cell Name : | 005-magenta1 |
| Archive Name : | Lu_Lichtman,DIADEM |
| Species Name : | mouse |
| Strain : | thy-1-YFP-16 |
| Structural Domains : | No Dendrites, No Soma, Axon |
| Physical Integrity : | Axon Moderate |
| Morphological Attributes : | No Diameter, 2D, Angles |
| Min Age : | 30.0 days
|
| Max Age : | 30.0 days
|
| Gender : |
Not reported
|
| Min Weight : | Not reported
|
| Max Weight : | Not reported
|
| Development : | young |
| Primary Brain Region : | brainstem |
| Secondary Brain Region : | Not reported |
| Tertiary Brain Region : | Not reported |
| Primary Cell Class : | principal cell |
| Secondary Cell Class : | Motoneuron |
| Tertiary Cell Class : | Not reported |
| Original Format : | NeuronJ.swc |
| Experiment Protocol : | in vitro |
| Experimental Condition : | Control |
| Staining Method : | yellow fluorescent protein |
| Slicing Direction : | Not reported |
| Slice Thickness : | 20
μm |
| Tissue Shrinkage : |
Not reported
|
| Objective Type : | Not reported |
| Magnification : | Not reported
|
| Reconstruction Method : | NeuronJ |
| Date of Deposition : | 2011-03-31 |
| Date of Upload : | 2012-05-17 |
| Persistence Vector : | 005-magenta1.pvec |
| Note : | The reconstruction does not contain the neuromuscular junctions, it stops at the base of the NMJs. 005-blue,005-cyan1,005-cyan2,005-green1,005-green2,005-magenta1,005-orange,005-pink,005-red1,005-red2,005-violet, and 005-yellow belong to a single connectome 005 |
|
|
| Reference Article |
| Related Article Reference : | The interscutularis muscle connectome |
|
|
|
|
| Measurements |
| Soma Surface : |
N/A |
| Number of Stems : |
1 |
| Number of Bifurcations : |
24 |
| Number of Branches : |
49 |
| Overall Width : |
1205.52 μm |
| Overall Height : |
1976.18 μm |
| Overall Depth : |
0 μm |
| Average Diameter : |
1 μm |
| Total Length : |
13674.8 μm |
| Total Surface : |
42960.6 μm2 |
| Total Volume : |
10740.2 μm3 |
| Max Euclidean Distance : |
2291.89 μm |
| Max Path Distance : |
3237.9 μm |
| Max Branch Order : |
9 |
| Average Contraction : |
0.89 |
| Total Fragmentation : |
2498 |
| Partition Asymmetry : |
0.46 |
| Average Rall's Ratio : |
2 |
| Average Bifurcation Angle Local : |
50.68° |
| Average Bifurcation Angle Remote : |
54.99° |
| Fractal Dimension : |
1.02 |
|
|
|
|
|
